Östling Handpräger Markiersysteme
Östling Pinmark Markiersysteme

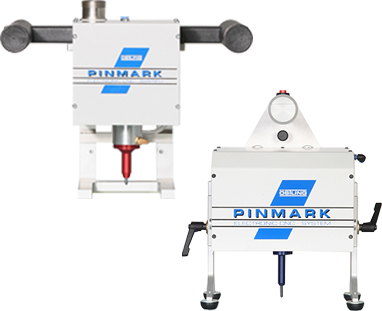

as hand embosser for highest freedom of movement

PinMark Handpräger 3/5 H
T x B x H175 x 265 x 286 mm
Gewicht3 Kg
Markierfeld30 x 50 mm
Auflösung0,1 mm
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112, UMC eco
NadelsystemWE3, WE3 lang, WP3
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 6 bar, 6 mm Luftanschluss

PinMark Handpräger 5/10 H
T x B x H273 x 271 x 287 mm
Gewicht5,5 Kg
Markierfeld50 x 100 mm
Auflösung0,1 mm
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112, UMC eco
NadelsystemWE3, WE3 lang, WP3
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 6 bar, 6 mm Luftanschluss

PinMark Handpräger 8/14 H
T x B x H220 x 347 x 320 mm
Gewicht11 Kg
Markierfeld80 x 140 mm
Auflösung0,1 mm
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112, UMC eco
NadelsystemWE2, WP2
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 6 bar, 8 mm Luftanschluss
PinMark Handpräger 40/100 H
T x B x H178,5 x 162,5 x 107 mm (mit Handgriff 238,5 mm)
Gewichtca. 3.0 kg
Markierfeld40 x 100 mm
Auflösung0,1 mm
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112, UMC eco
NadelsystemP10, P15, P21
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 6 bar, 6 mm Luftanschluss
PinMark Handpräger 40/150 H
T x B x H178,5 x 210 x 107 mm (mit Handgriff 238,5 mm)
Gewichtca. 3,8 kg
Markierfeld40 x 150 mm
Auflösung0,1 mm
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112, UMC eco
NadelsystemP10, P15, P21
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 6 bar, 6 mm Luftanschluss
Loading...

Needle embossing accessories for needle embossing systems, needle embossers and needle scribers

We have a complete range of accessories available for you so that you can exploit the full potential of your marking system for metal marking. Here are some examples of the needle marker-/score range:

  • rotation axes for round parts, so that the marking needle always perfectly matches the object to be marked

  • High axes in all versions (manual, electric, pneumatic, fully automatic)

  • barcode scanner for convenient reading and activation of data to be marked

  • camera systems for automatic machine reading of previously marked data such as 1D, 2D and DataMatrix codes (Please take a look at our information on HIBC and GS1)

  • needle systems for various applications, materials and degrees of hardness

  • Different housing variants so that the Östling needle embossers / scribers fit perfectly into your operating environment

  • Spare Parts all kind directly from the manufacturer – Quality Made in Germany

For more information about needle embossing accessories, see here.
