PinMark Nadelritzer
als Tischritzer für Kleinserien und Einzelstücke

Scoring markers / scoring embossers as table-top devices (table scoring machines) for small series and individual items

The PinMark scribers are suitable as table scribers especially for small series and single pieces.

The usual robust and compact design of our table scorers enables you to produce extremely precise markings on your products or components. These metal markings convince by an extraordinarily good legibility, which plays an outstanding role in applications in connection with 2D codes.

Table scorers in combination with our Vision systems (DataMatrix code hand and fixed cameras) make it possible to read codes exactly even after hard use and damage.

A prerequisite for the use of the table scorers is the good positioning of your products. The height can be adjusted by hand wheel or by electric or pneumatic height adjustment (so called Z-axis).

In combination with the controller UMC 112, the functionality of the table scorers is optimally adapted to your applications.

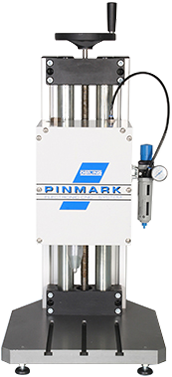

 PinMark Tischritzer 4/6 SP/RT
T x B x H450 x 360 x 800 mm
Gewicht22 Kg inkl. Tisch
Markierfeld40 x 60 mm
GeräuschpegelCa. 21 dB (A)
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112
NadelsystemWE2, WE2 lang, WP2
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 4 bar, 6 mm Luftanschluss
 PinMark Tischritzer 8/14 SP/RT
T x B x H450 x 350 x 800 mm
Gewicht30 Kg inkl. Tisch
Markierfeld80 x 140 mm
GeräuschpegelCa. 21 dB (A)
Geschwindigkeitabhängig von Markierparametern
SteuerungUMC 112
NadelsystemWE2, WE2 lang, WP2
Energie230V, 50Hz / optional 115V, 60Hz
Druckluftmax. 4 bar, 6 mm Luftanschluss
Loading...

Needle embossing accessories for needle embossing systems, needle embossers and needle scribers

We have a complete range of accessories available for you so that you can exploit the full potential of your marking system for metal marking. Here are some examples of the needle marker-/score range:

  • rotation axes for round parts, so that the marking needle always perfectly matches the object to be marked

  • High axes in all versions (manual, electric, pneumatic, fully automatic)

  • barcode scanner for convenient reading and activation of data to be marked

  • 2D-Code Cameras for automatic reading of previously marked data

  • needle systems for various applications, materials and degrees of hardness

  • Different housing variants so that the Östling needle embossers / scribers fit perfectly into your operating environment

  • Spare Parts all kind directly from the manufacturer – Quality Made in Germany

For more information about needle embossing accessories, see here.
