XL technology in XS format

Highlights

Design

Kompakte und leichte Bauweise

Wartung

Wartungsarm, nahezu geräuschloser Betrieb möglich

Höchste Sicherheit

Zwei sichere Eingänge bis PL e (Kat. 4) nach EN ISO 13849-1

XL technology in XS format

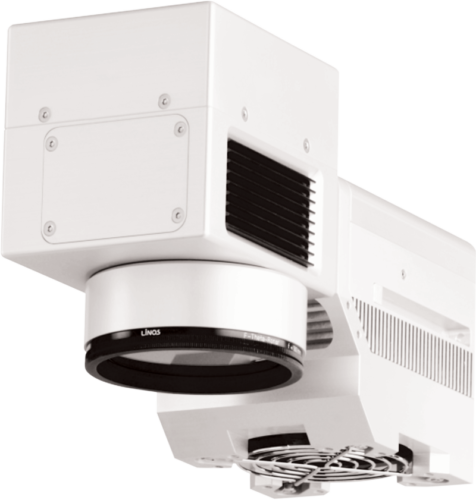

4 kilogram marking head for laser marking

LasOnAll XS – This laser ensures extra compact and powerful laser marking on all surfaces.

With its compact, cubic design, the LasOnAll XS laser becomes an ideal piece of industrial design. 245 x 145 x 100 mm3 volume with a weight of approx. 4 kg marking head are the dimensions of the LasOnAll XS laser. Therefore, in contrast to the previously heavy and space-consuming resonators of comparable marking systems, the most striking difference is probably the much easier integration in the smallest space.

In the further development of this model, not only the architecture but also the technology of the laser unit of the LasOnAll XS were fundamentally revised. Thanks to its significantly improved ergonomics and efficiency, CW outputs of up to 200kW peak power can now be achieved with minimum dimensions.
This allows the greatest possible flexibility in different application areas and applications of laser marking. As a diode-pumped solid-state laser, the LasOnAll XS from Östling, in contrast to the fiber-based systems, does not have any problems with optical back reflections, as they can occur with the laser marking of copper, brass and other highly reflective materials for this wavelength range.

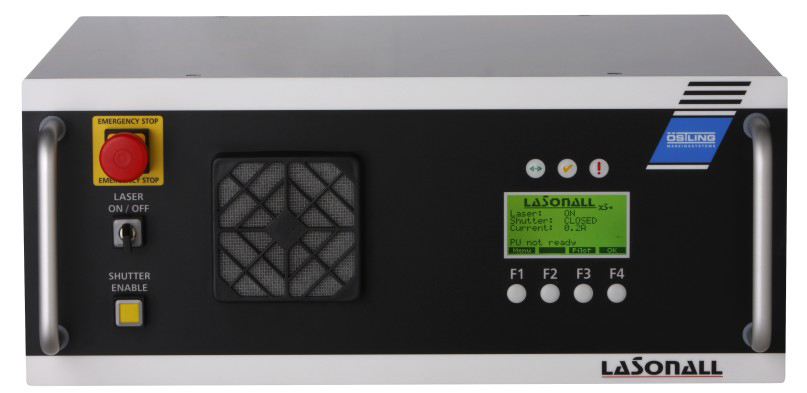

For the LasOnAll XS laser, Östling offers an industry-compliant standardized 19-inch rack. This laser control unit contains all power and control electronics and is also considered a lightweight in its class, weighing around 14 kilograms.

A plus in flexibility and user-friendliness is certainly the fact that the laser control unit only has to be connected to a Windows computer or laptop via a USB cable via “Plug & Play” in the simplest case.

This fact and the extremely low weight for the complete package make it possible to integrate the LasOnAll XS laser extremely flexibly into almost all industrial environments without any problems.

Further features

  • Highest security
    Two safe inputs up to PL e (Cat. 4) according to EN ISO 13849-1
  • Quality
    Unsurpassed flexibility with high quality
  • Cooling
    Thermoelectric air cooling
  • Laser diode
    Extremely long service life of the laser diode
  • Development
    Many system components from own development
  • OEM
    OEM models and complete solutions available
  • Software
    User-friendly software under Windows XP / 7 / 8 / 10
  • Special mechines
    Precisely adapted to your needs through in-house special machine construction

Competitive in the fiber segment

The diode service life of the XS series is in no way inferior to that of the fiber lasers, whereby in the case of maintenance only the change of the diode module is necessary. In contrast to this, the fiber system in most cases requires an exchange of the entire laser unit with a complete stop of the laser marking.

In addition to maintenance, the energy balance of the LasOnAll XS laser is also particularly efficient. With the 20 Watt version, the power consumption is only max. 600W.

The Östling LasOnAll XS family is available as standard in the variants XS5 (5W), XS10 (10W), XS20 (20W), XS30 (30W) and XS40 (40W).
All LasOnAll XS models are pure air-cooled and do not require additional water cooling.

The working distance to the workpiece for laser marking depends on the F-Theta lens used. PDF download: LasOnAll XS Arbeitsabstand Resonator.

 XS5XS10XS20XS30XS40
WellenlängeFestkörperlaser Nd:YVO4 (1064 nm), diodengepumpt, aktiv gütegeschaltet
Laserklasse
Strahlqualität< 1,5< 2< 2,2< 2,5< 2,5
Strahldurchmesser5 mm6 mm6 mm8 mm9 mm
Pulsbreite4 - 40 ns5 - 20 ns5 - 20 ns7 - 40 ns7 - 40 ns
Pulsbreite @ 10 kHz4 ns5 ns5 ns7 ns8 ns
Pulsenergie @ 10 kHz0,3 mJ0,5 mJ0,8 mJ1,3 mJ2,0 mJ
Pulsspitzenleistung @ 20 kHz20 kW60 kW90 kW110 kW120 kW
Langzeit Leistungsinstabilität< 5%< 5%< 5%< 5%< 5%
Kühlsystemintegrierte thermoelektrische Luftkühlung
Zieldiodeintegrierte rote Laserdiode λ = 635 nm 3 mW (Klasse 2M)
Sicherheitskennwerte
PL / KategoriePLe / Kat. 4
DC99% (hoch)
CCF>65 Punkte
B10d Wert (für ein Kanal)12.000.0007.500.0002.500.00020.000.00020.000.000
Allgemein
Gewicht Resonator4,5 kg4,5 kg4,5 kg6,5 kg6,5 kg
Abmessungen Resonator244 x 98 x 145 mm244 x 98 x 145 mm244 x 98 x 145 mm334 x 98 x 151 mm334 x 98 x 151 mm
Gewicht Rack15 kg15 kg15 kg18 kg18 kg
Elektr. Anschlusswerte90 bis 264 VAC, 50/60 Hz, < 600 W @ XS 50
Betriebstemperatur-10 bis -35 °C (46 bis 95 °F)
Luftfeuchtigkeit< 90% nicht kondensierend
Loading...

For our various laser marking systems we have an extensive range of accessories available. With different options you can extend the functions of our marking lasers. Below are a few examples of our comprehensive range of laser accessories:

  • Different housing variants for complete solutions
  • Rotation axes for round parts, so that the processing distance and laser beam are always perfectly and precisely aligned with the object to be marked.
  • Height axes in all possible designs (manual, electric, pneumatic, fully automatic)
  • Axis control UMC box Laser for controlling two additional functions, such as height axis and positioning axis. The rotary indexing table and magazine can also be controlled. With this optional laser accessory, cycle times for laser marking can be greatly reduced.
  • Barcode scanner for practical reading and activation of data to be marked
  • Camera systems for automatic machine reading of previously marked data such as 1D, 2D and DataMatrix codes (Please have a look at our information on HIBC and GS1)
  • Lenses for various applications / marking field sizes and workpieces / materials
  • Spare parts of all kinds for our marking lasers
  • Laser safety goggles for different wavelengths available on request

Anybus Communicator PROFINET IRT

With the Anybus Communicator you can integrate serial devices (RS-232/422/485) into a PROFINET-IRT network. The Anybus Communicator is a proven and reliable protocol converter that connects non-networked devices to PROFINET-IRT. The Communicator performs intelligent protocol conversion and provides the serial data of the higher-level PLC as I/O data. The Communicator is a compact stand-alone gateway for IP20 and DIN rail mounting that requires a 24-volt power supply. It complies with the current PROFINET-IRT specification and has been successfully tested for network compatibility.

More information about laser accessories can be found here.

The XS Designer software combines marking software, CAD editor, parameter and interface management, sequence programming and diagnostic tools. This Windows-based marking software makes laser technology easy to master.

Further information about the XS Designer software can be found here.
