Stencil Printer
Print short-term stencils quickly and easily

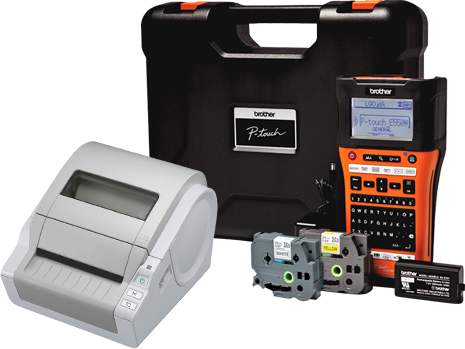

Brother PT-E550WVP
With the PT-E550WVP stencil printer and the Östling stencil bands you can easily and quickly create short time stencils for electrolytic marking for simple product marking. These marking devices are particularly suitable for you if you want to mark frequently changing texts or only a few parts.
The PT-E550WVP stencil printer can be used as a stand-alone device or in conjunction with a PC. The device itself can be used to print texts, numbers and a limited number of special characters. If the PT-E550WVP stencil printer is connected to a PC via USB, graphics (e.g. company logos), symbols, bar and DataMatrix codes can also be printed. It can be controlled from any program as a printer. But is also delivered with a comfortable, intuitive software. The marking device cuts the finished template independently and automatically and the marking process can already be started.
The Östling stencil ribbons associated with the stencil printer are available in 2 sizes (18 mm and 24 mm).
Electrolytic stencils are also commonly referred to as etching stencils or marking stencils.
| Brother PT-E550WVP | |
|---|---|
| Auflösung | 180 x 180 dpi (180 x 360 dpi über PC-Software) |
| Druckgeschwindigkeit | Max. 30 mm/Sekunde (mit Netzadapter) |
| Maximale Druckhöhe | 18 mm |
| Arbeitsspeicher | 1.500 Zeichen |
| Phrasenspeicher | 18.297 Zeichen |
| Druckverfahren | Thermotransfer |
| Schriftbandbreiten | 3,5/6/9/12/18/24 mm (TZe); 5,8/8,8/11,7/17,7/23,6 mm (HSe) |
| Schriftart | 14 |
| Schriftgrößen | Auto, 6, 9, 12, 18, 24, 36, 42, 48 Punkte |
| Fortlaufende Nummerierung | 1-50 (einfach, gleichzeitig, erweitert) |
| Schriftstile | 10 |
| Mehrfachdruck | 1-99 |
| Einstellbare Etikettenlänge | 25-999 mm (4,5-999 mm über PC-Software) |
| Druckvorschau | Ja (Text, Etikettenlänge, Layout) |
| LC-Display | 3 Zeilen à 16 Zeichen, hintergrundbeleuchtet |
| Zeicheneingabe über | QWERTZ-Tastatur |
| Anzahl der Tasten | 70 |
| Abschneidevorrichtung | Automatisch (Voll- und Halbschnitt) |
| Abmessungen (BxTxH) | 126 x 250 x 94 mm |
| Gewicht | 1,05 kg |
| Stromversorgung Batterien | 6 x AA Alkaline/wiederaufladbar (LR6/HR6) (nicht im Lieferumfang enthalten), Lithium-Ionen Akku BA-E001 |
| Schnittstellen | USB (Windows, Mac); WLAN (Infrastruktur, Ad-hoc, Wi-Fi Direct) |
| Stromversorgung Netzadapter | AD-E001 |
Thermal stencil printer
With the thermal stencil printer and the Östling-Stencil bands can be created quickly and easily short time stencils for electrolytic marking. This stencil printer is particularly suitable for you if you want to mark frequently changing texts or only a few parts (e.g. in special machine construction).
The thermal stencil printer is connected to a PC via USB interface. This allows graphics (company logos), symbols, bar codes and data matrix codes to be printed. It can be controlled from any program as a printer, but is also supplied with a convenient, intuitive software.
The marking device cuts the finished etching template independently and automatically and the marking process can be started.
The Östling stencil tape is available in the size 100 mm x 100 m.
| Thermoschablonendrucker | |
|---|---|
| Auflösung | 300 dpi |
| Druckgeschwindigkeit | 110 mm / Sekunde max. |
| Maximale Druckbreite | 98,6 mm |
| Zeicheneingabe über | PC-Tastatur |
| Schneideeinheit | Automatisch |
| Abmessungen (BxTxH) | 173 x 229 x 158 mm |
| Gewicht | ca. 1,7 kg |
| Schnittstelle | USB 2.0, seriell (RS-232C) |
| Kompatibilität | Windows |
| Darstellbare Zeichen | alle im PC integrierten Zeichen und Symbole |
| Min./max. Etikettenlänge | 25 mm bis 3 m |
| Bandbreite | bis max. 102 mm |
| Stromversorgung | Netzkabel |
