Electrolytic marking devices
for professional use

Coming soon!

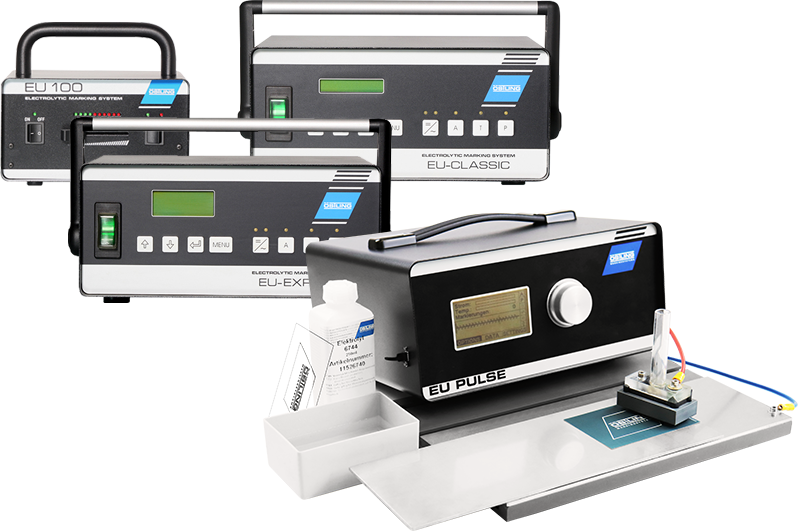

The most technically innovative electrolytic marking system worldwide.

Cost-effective and durable marking!

Technically speaking, electrolytic marking is very simple: except for a device that supplies the energy and only one marking head is required for the electrolyte. A template is clamped onto the marking head or placed directly onto the workpiece to be marked.

The marking head and the workpiece are connected to the control. As soon as the electrolyte-soaked marking head is pressed onto the workpiece, the circuit is closed.

Current flows and the workpiece is marked with an exact image of the stencil.

Further information can be found in the technical data or in a personal conversation with our team.

Data sheets

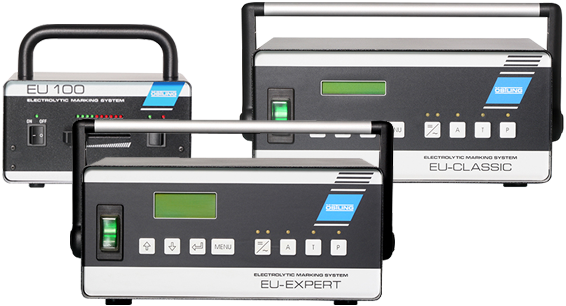

Electrolytic marking device EU Expert 300 and EU Expert 500

Automated electrolytic marking devices for the professional use of Östling.

The controls Etch Unit Expert 300 and 500 offer possibilities that are a real plus in daily professional use.

For example, communication with a PLC or a PC is possible, so that these devices can be used as the basis for automated applications. A pulse marking is also possible as well as the storage of several electrolytes with the corresponding marking parameters.

The EU Expert 500 is particularly recommended for large black areas or grid markings.

Further information can be found in the technical data or in a personal conversation with our team.

Eingangsspannung115 oder 230V AC115 oder 230V AC
Ausgangsspannung0 – 24V AC oder DC0 – 24V AC oder DC
Leistung310 VA510 VA*
Maße (HxBxT)140 x 380 x 220 mm140 x 380 x 220 mm
– Kommunikation mit SPS oder PC
– integrierter Timer, pulsfähig
– vierzeiliges, beleuchtetes Display
– optional: Hartmetallausgang
– EMV-geprüft
– Kommunikation mit SPS oder PC
– integrierter Timer, pulsfähig
– vierzeiliges, beleuchtetes Display
– optional: Hartmetallausgang
– EMV-geprüft

* für schnelleres Markieren größerer Flächen

EU Classic 300 and EU Classic 500 are the classics for electrolytic marking

.
The most widely used control units for permanent product marking on metallic surfaces

They already have a number of features that enable and facilitate precise working with a wide variety of metal alloys. For example, an electrolyte pump can be controlled automatically in order to always use the optimum amount of electrolyte during a marking process.

Further information can be found in the technical data or in a personal conversation with our team.

The EU Classic 500 is particularly recommended for large black areas or grid markings.

Eingangsspannung115 oder 230V AC115 oder 230V AC
Ausgangsspannung0 – 24V AC oder DC0 – 24V AC oder DC
Leistung310 VA510 VA*
Maße (HxBxT)140 x 380 x 220 mm140 x 380 x 220 mm
– integrierter Timer
– einzeiliges, beleuchtetes Display
– optional: Hartmetallausgang
– EMV-geprüft
– integrierter Timer
– einzeiliges, beleuchtetes Display
– optional: Hartmetallausgang
– EMV-geprüft

* für schnelleres Markieren größerer Flächen

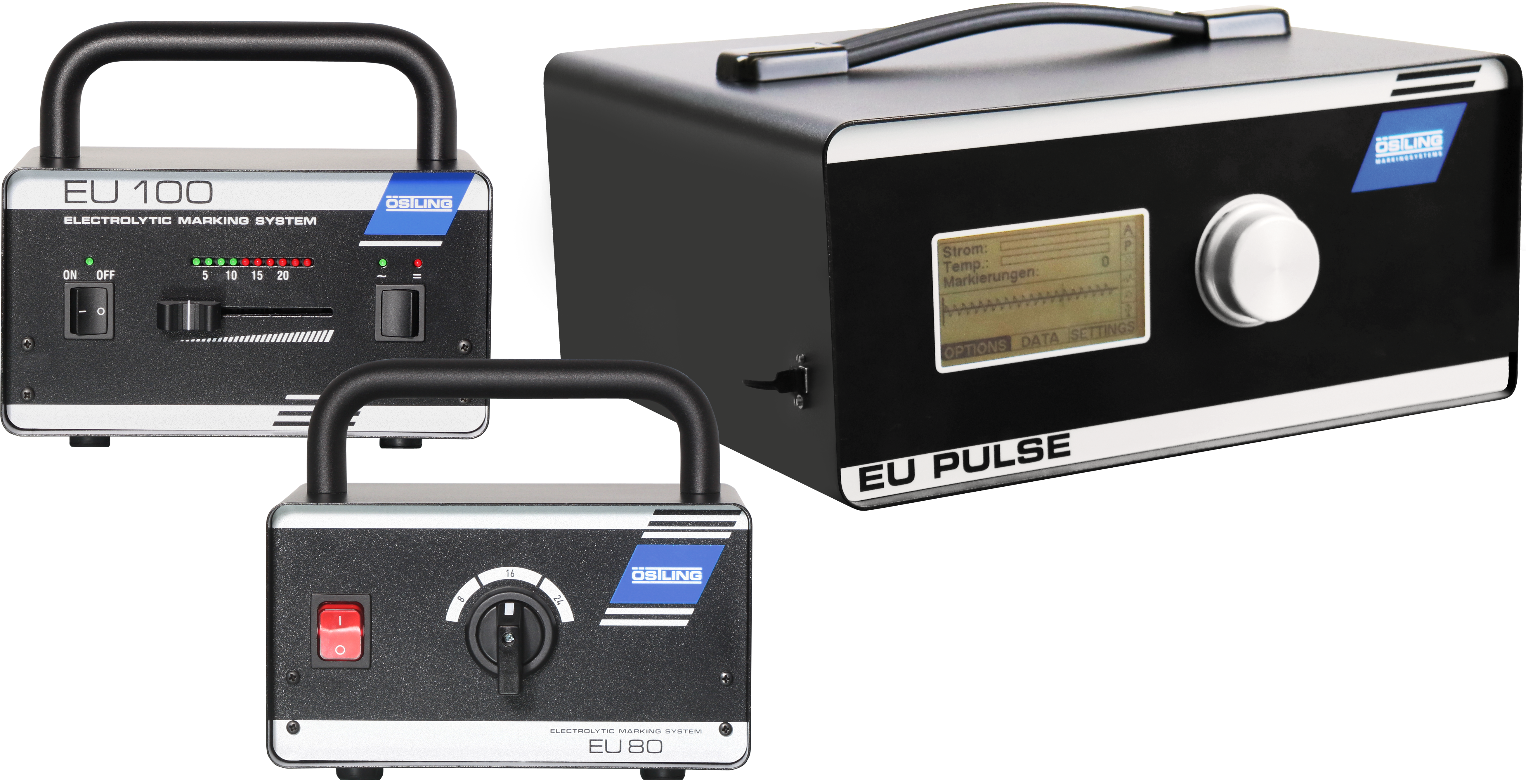

EU 80 and EU 100

The inexpensive handheld and control devices for entry into electrolytic marking

The EU 80 is the inexpensive entry into the world of electrolytic marking. Ideal for serial numbers and small markings in general.

The EU 100 can generate direct current as output voltage in addition to alternating current. Thus depth markings are also possible.

Further information can be found in the technical data or in a personal conversation with our team.

Eingangsspannung115 oder 230V AC115 oder 230V AC
Ausgangsspannungmax. 24V ACmax. 24V AC oder DC*
Leistung100 VA100 VA
Maße (HxBxT)155 x 200 x 150 mm155 x 200 x 150 mm
– EMV-geprüftEMV-geprüft

* hierdurch Tiefenmarkierung möglich
Loading...

Electrolytic accessories – Everything you need for electrolytic marking is available from us.

From own production of Östling – Quality Made in Germany.

Whether you have a manual workstation, a semi-automatic system or a fully automatic solution: You will have a hard time confronting us with a problem that we have not already solved in the electrolytic area.

We can offer you a solution for the most diverse product shapes, sizes and other requirements.

Electrolytic marking is still a cost-effective solution for achieving first-class and durable marking results quickly and elegantly with simple means.

Further information about electrolytic accessories can be found here.
