PinMark Needle scriber
for integration into any industrial automation concept – without restrictions
Installation scorer from Östling for integration into any industrial automation concept – without restrictions

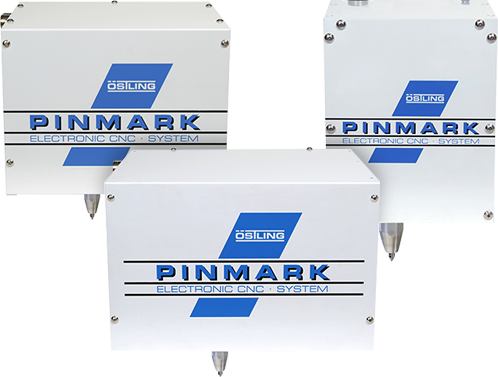

The built-in scribers of the PinMark series are designed for the highest requirements of industrial automation.
Whether in production lines and/or integrated in special machines. Due to the almost arbitrary positioning of the scribing heads, with compact dimensions at the same time, integration is usually possible without any problems.
In combination with our innovative controller UMC112 the functionality of the devices is optimally adapted to your applications. State-of-the-art interfaces ensure flexibility and reliability – even in extreme working environments.
| PinMark Einbauritzer 4/6 SP/RE | |
|---|---|
| T x B x H | 200 x 200 x 345 mm |
| Gewicht | 12,2 Kg |
| Markierfeld | 40 x 60 mm |
| Geräuschpegel | Ca. 21 dB (A) |
| Geschwindigkeit | abhängig von Markierparametern |
| Steuerung | UMC 112 |
| Nadelsystem | WE2, WE2 lang, WP2 |
| Energie | 230V, 50Hz / optional 115V, 60Hz |
| Druckluft | max. 4 bar, 8 mm Luftanschluss |
| PinMark Einbauritzer 8/14 SP/RE | |
|---|---|
| T x B x H | 265 x 426 x 255 mm |
| Gewicht | 20,5 Kg |
| Markierfeld | 80 x 140 mm |
| Geräuschpegel | Ca. 21 dB (A) |
| Geschwindigkeit | abhängig von Markierparametern |
| Steuerung | UMC 112 |
| Nadelsystem | WE2, WE2 lang, WP2 |
| Energie | 230V, 50Hz / optional 115V, 60Hz |
| Druckluft | max. 4 bar, 8 mm Luftanschluss |
| PinMark Einbauritzer 15/20 SP/RE | |
|---|---|
| T x B x H | 335 x 486 x 260 mm |
| Gewicht | 23,9 Kg |
| Markierfeld | 150 x 200 mm |
| Geräuschpegel | Ca. 21 dB (A) |
| Geschwindigkeit | abhängig von Markierparametern |
| Steuerung | UMC 112 |
| Nadelsystem | WE2, WE2 lang, WP2 |
| Energie | 230V, 50Hz / optional 115V, 60Hz |
| Druckluft | max. 4 bar, 8 mm Luftanschluss |
| PinMark Einbauritzer 15/30 SP/RE | |
|---|---|
| T x B x H | auf Anfrage |
| Gewicht | auf Anfrage |
| Markierfeld | 150 x 300 mm |
| Geräuschpegel | Ca. 21 dB (A) |
| Geschwindigkeit | abhängig von Markierparametern |
| Steuerung | UMC 112 |
| Nadelsystem | WE2, WE2 lang, WP2 |
| Energie | 230V, 50Hz / optional 115V, 60Hz |
| Druckluft | max. 4 bar, 8 mm Luftanschluss |
Needle embossing accessories for needle embossing systems, needle embossers and needle scribers
We have a complete range of accessories available for you so that you can exploit the full potential of your marking system for metal marking. Here are some examples of the needle marker-/score range:
rotation axes for round parts, so that the marking needle always perfectly matches the object to be marked
High axes in all versions (manual, electric, pneumatic, fully automatic)
barcode scanner for convenient reading and activation of data to be marked
2D-Code Cameras for automatic reading of previously marked data
needle systems for various applications, materials and degrees of hardness
Different housing variants so that the Östling needle embossers / scribers fit perfectly into your operating environment
Spare Parts all kind directly from the manufacturer – Quality Made in Germany
For more information about needle embossing accessories, see here.
