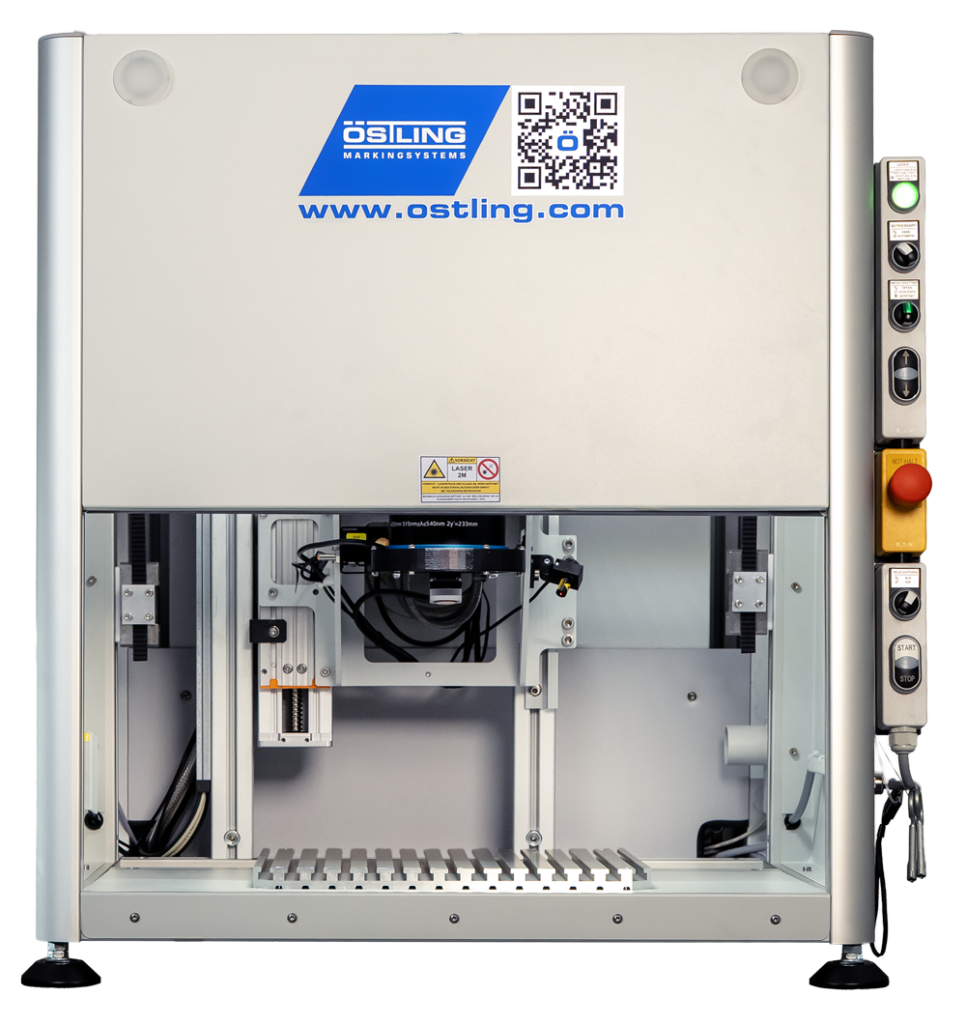

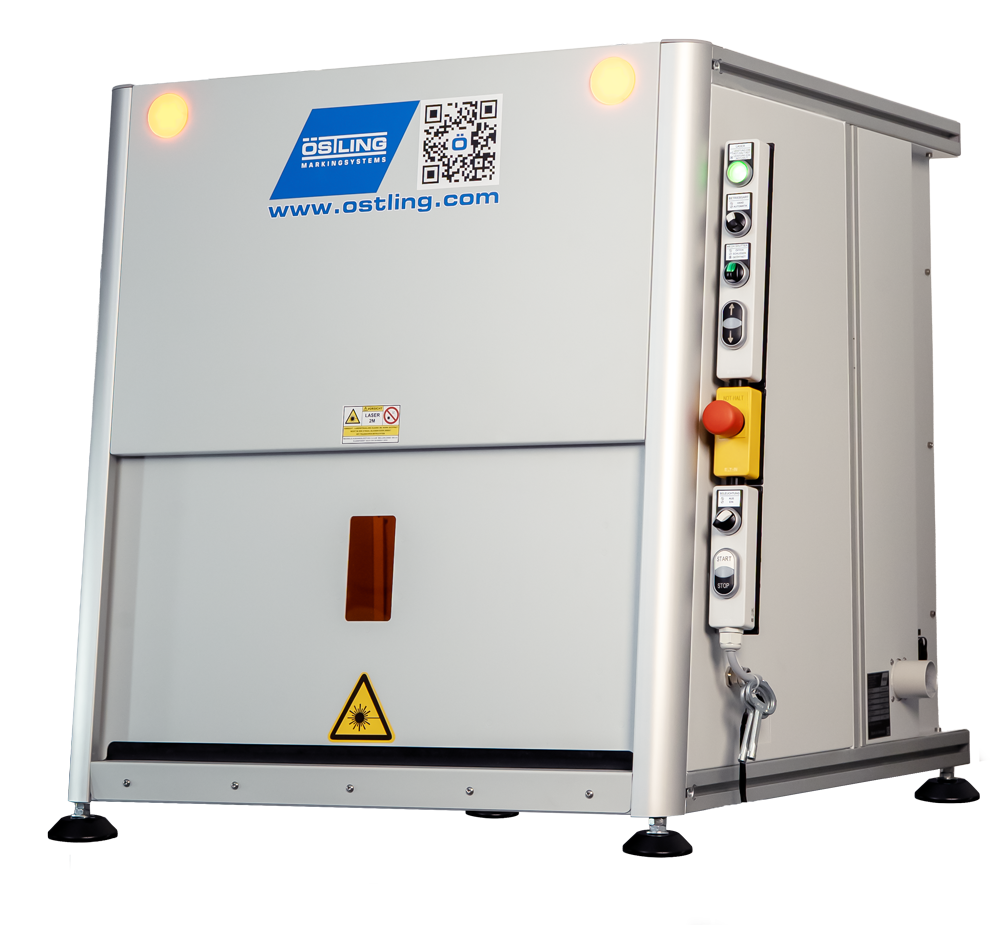

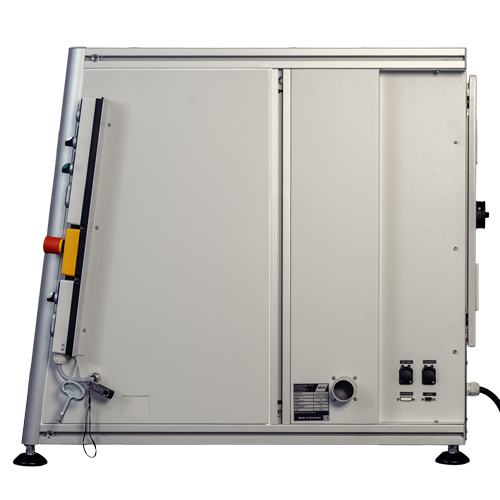

AIOBox XL – Laser Safety Enclosure with Automatic Height Adjustment
Highlights
The Big Brother of the AIO Box

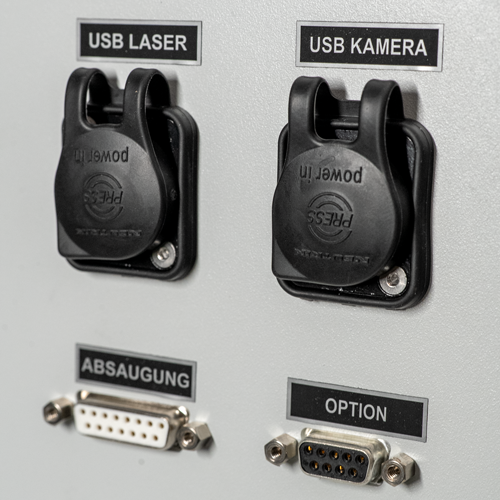

This new AIOBox XL is also a true “plug and play” laser station. For immediate readiness for use, it is sufficient to connect it to a PC via USB or network cable (LAN).
The robust enclosure provides a safe and ergonomic working environment for professional laser processing. Thanks to its stable construction, comfortable operation and versatile adjustment options, the AIOBox XL convinces as the powerhouse among laser safety cabins and is ideally suited for industrial applications.

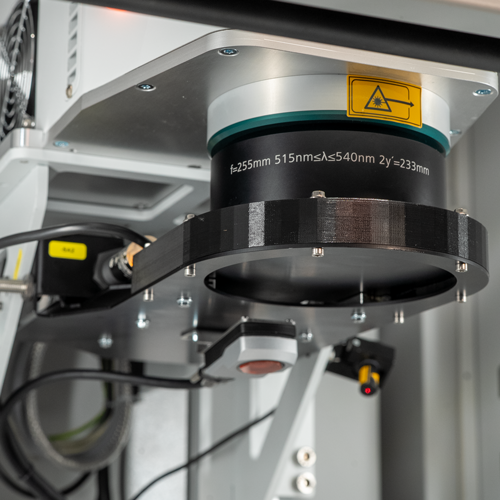

Depending on the lens used, a marking area of up to 200 × 200 mm can be utilized.
The AIOBox XL is equipped with two separate safety circuits and meets the requirements of the Performance Leve l e (PL e) according to EN ISO 13849-1.
The laser is safely switched off when the sliding door is opened and an emergency stop device is also provided.

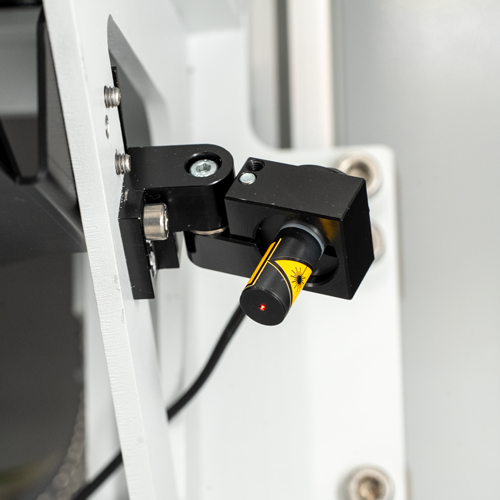

The extraction system is standard on all AIOBox XL variants and the focus aid/pointer is available on all models.
For a clear view, the AIOBox is illuminated from the inside with LEDs.
The AIOBox XL is compact and extremely quiet, so that you can use the laser station undisturbed in the office or in a quiet environment.
With the proven XS Designer software, automated markings such as serial numbers, 2D codes (DataMatrix), etc. can also be easily implemented.
Simple and compact
The AIO laser is the most compact Q-switched DPSS laser. AIO laser systems are offered in a robust and lightweight monoblock design and enable a wide variety of marking applications that are also suitable for micromachining.
The “All In One” monoblock design eliminates the need for external optical fiber and other sensitive cable connections for system integration. Optionally, the AIOBox can also be extended if you want to mark larger workpieces, for example.
The simple and reliable integration, even in confined spaces, is another advantage of the AIO laser system.
Further features
Laser safety glass
Laser safety glass windows for safe setup and observation
Highest security
Two safe inputs up to PL e (Cat. 4) acc. to EN ISO 13849-1
Quality
Unsurpassed flexibility with high quality
Cooling
Thermoelectric air cooling
Laser diode
Extremely long service life of the laser diode
Development
Many system components from our own development
OEM
OEM models and complete solutions available
Software
User friendly software under Windows 10 / 11
Special engineering
In-house special machine construction exactly adapted to your needs
- Different housing variants for complete solutions
- Rotation axes for round parts, so that the processing distance and laser beam are always perfectly and precisely aligned with the object to be marked.
- Height axes in all possible designs (manual, electric, pneumatic, fully automatic)
- Axis control UMC box Laser for controlling two additional functions, such as height axis and positioning axis. The rotary indexing table and magazine can also be controlled. With this optional laser accessory, cycle times for laser marking can be greatly reduced.
- Barcode scanner for practical reading and activation of data to be marked
- Camera systems for automatic machine reading of previously marked data such as 1D, 2D and DataMatrix codes (Please have a look at our information on HIBC and GS1)
- Lenses for various applications / marking field sizes and workpieces / materials
- Spare parts of all kinds for our marking lasers
- Laser safety goggles for different wavelengths available on request
Anybus Communicator PROFINET IRT
With the Anybus Communicator you can integrate serial devices (RS-232/422/485) into a PROFINET-IRT network. The Anybus Communicator is a proven and reliable protocol converter that connects non-networked devices to PROFINET-IRT. The Communicator performs intelligent protocol conversion and provides the serial data of the higher-level PLC as I/O data. The Communicator is a compact stand-alone gateway for IP20 and DIN rail mounting that requires a 24-volt power supply. It complies with the current PROFINET-IRT specification and has been successfully tested for network compatibility.
More information about laser accessories can be found here.
The XS Designer software combines marking software, CAD editor, parameter and interface management, sequence programming and diagnostic tools. This Windows-based marking software makes laser technology easy to master.
Further information about the XS Designer software can be found here.
